MUSIC ROBOTICS / SECOND PROTOTYPE

Ventus
Reed II.

Exploring a different instrument: a flute prototype with mechanical key actuation, string linkages, and an airflow tunnel.

Explore the prototype ↘

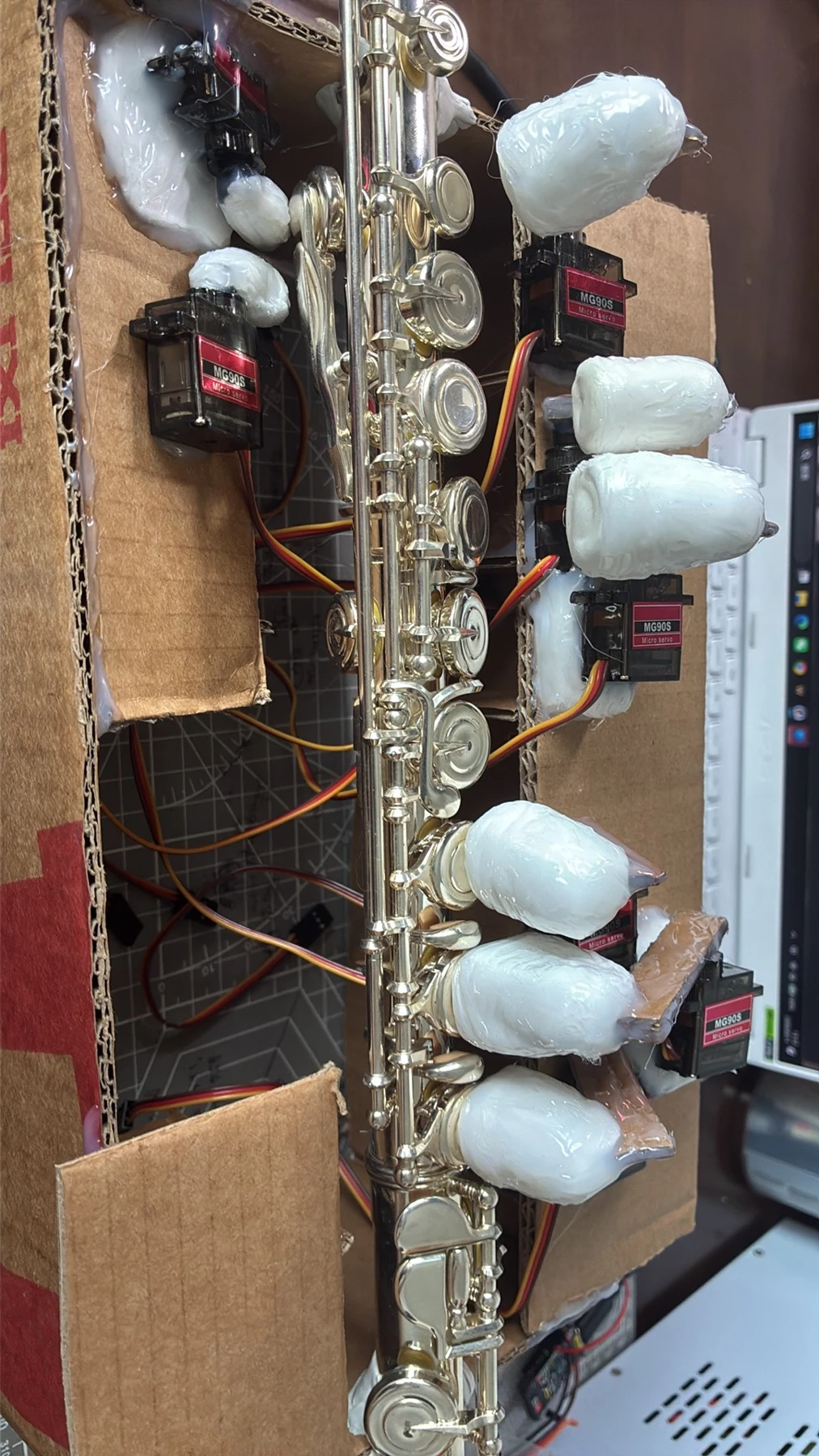

Overall view of Ventus Reed II: a flute mounted beside servo motors, linkages, and electronics.

01 / INSIDE THE BUILD

Parts, connections,
possibilities.

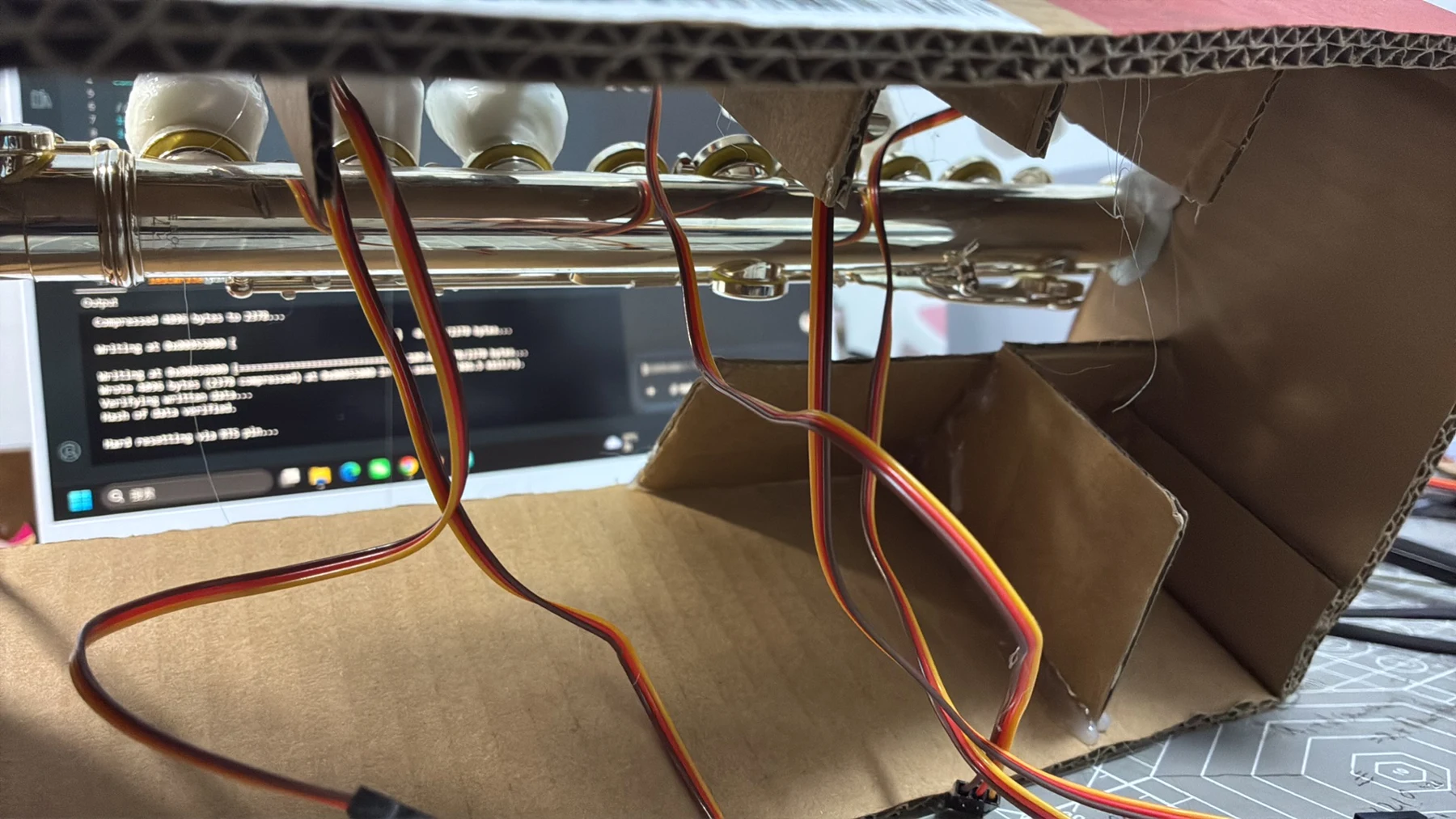

These photographs document the prototype's structure, key actuation, string mechanism, lift structure, and tunnel. Select a photograph to see the full image.

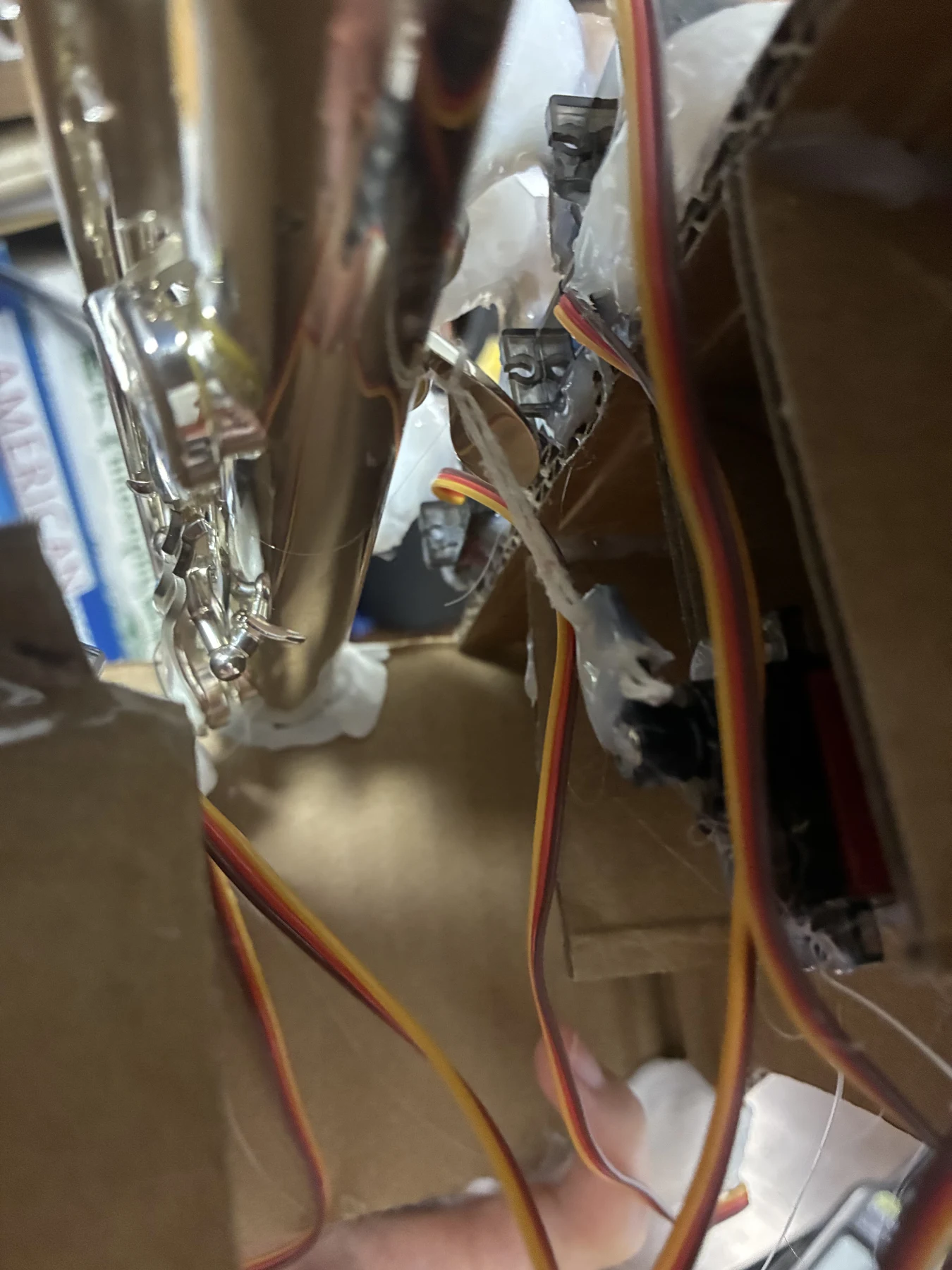

Ventus Reed II: String Structure2 — String Structure2

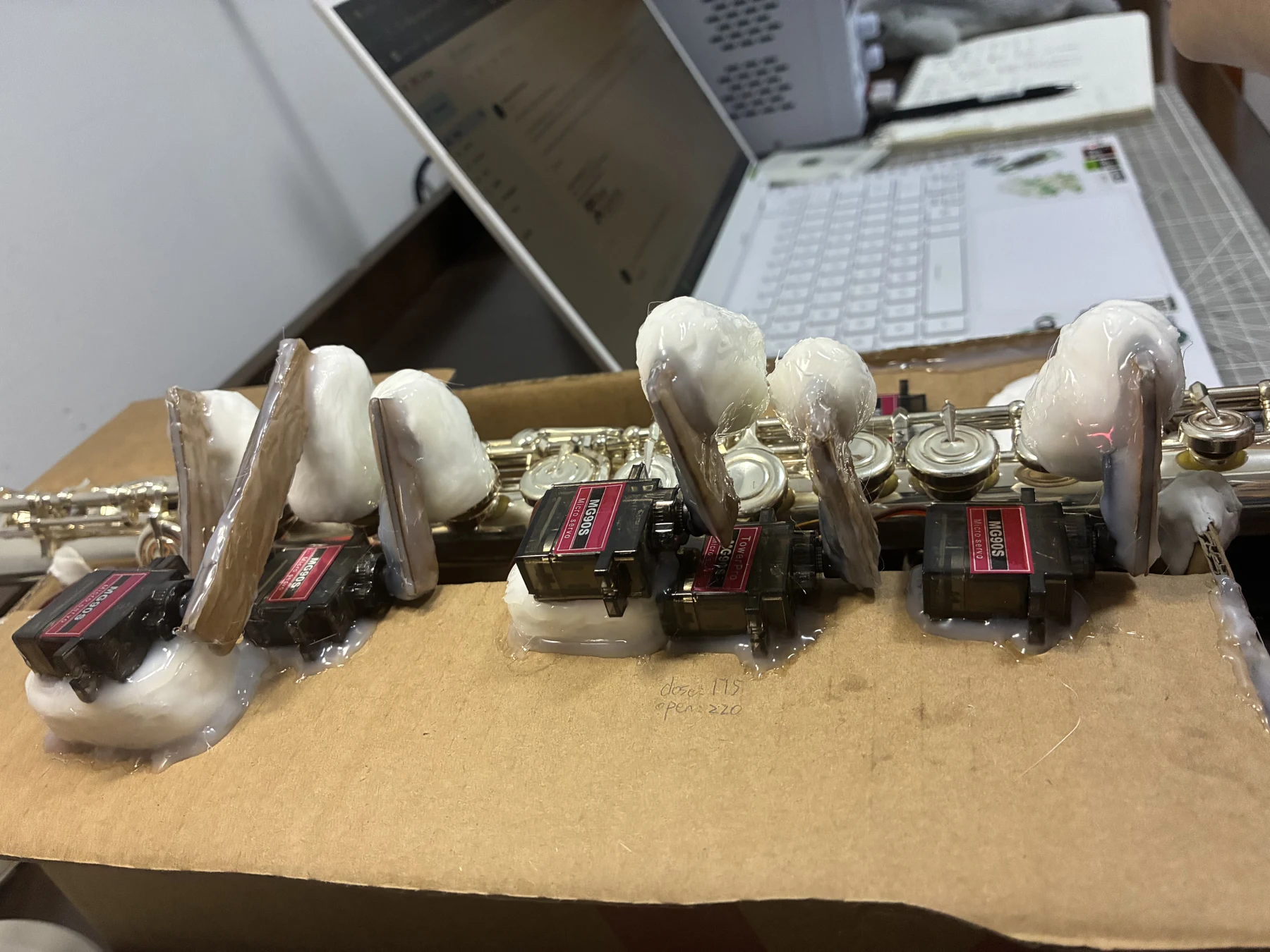

Ventus Reed II: Key Actuation — Key Actuation

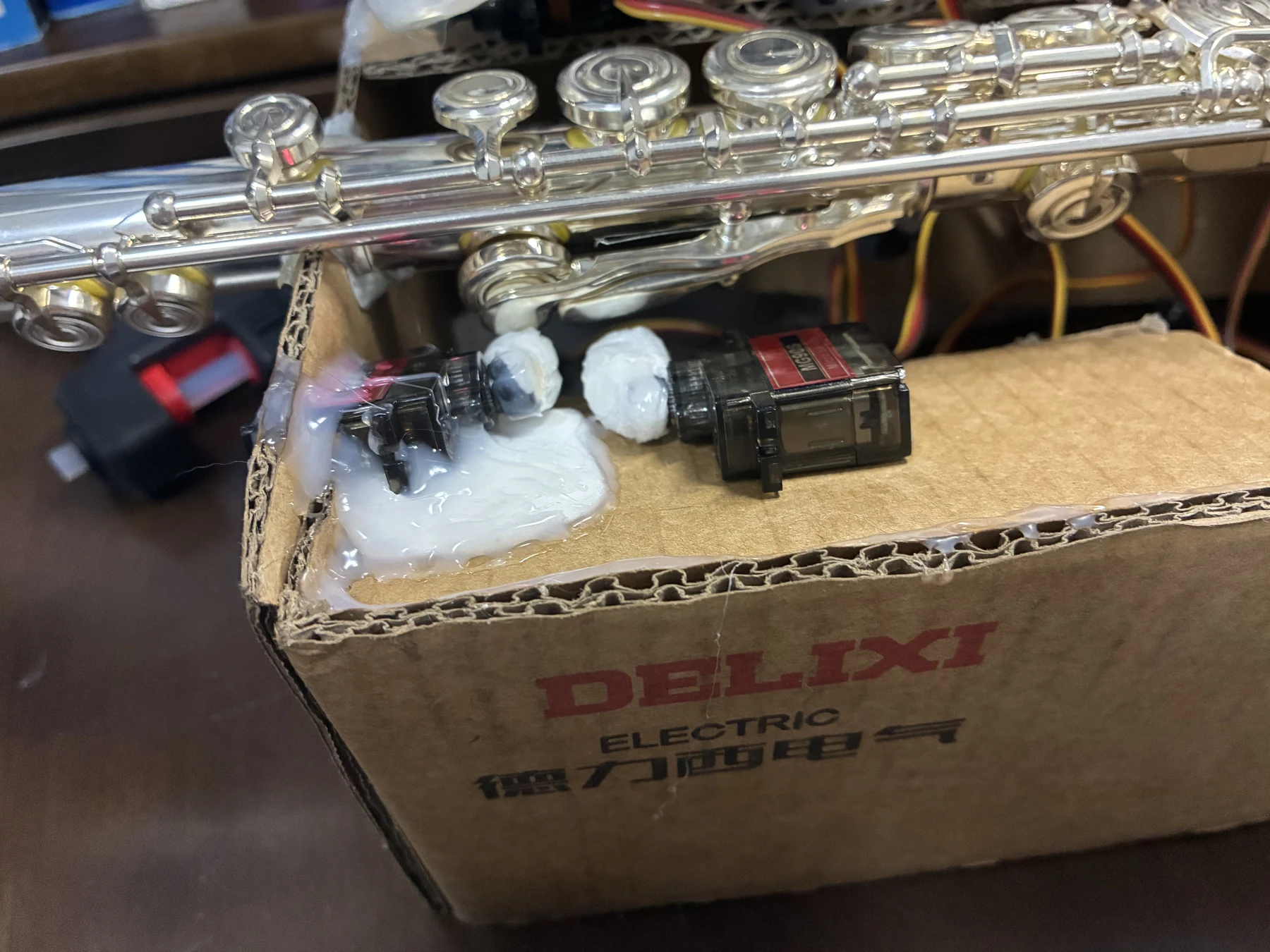

Ventus Reed II: Up Lift Structure — Up Lift Structure

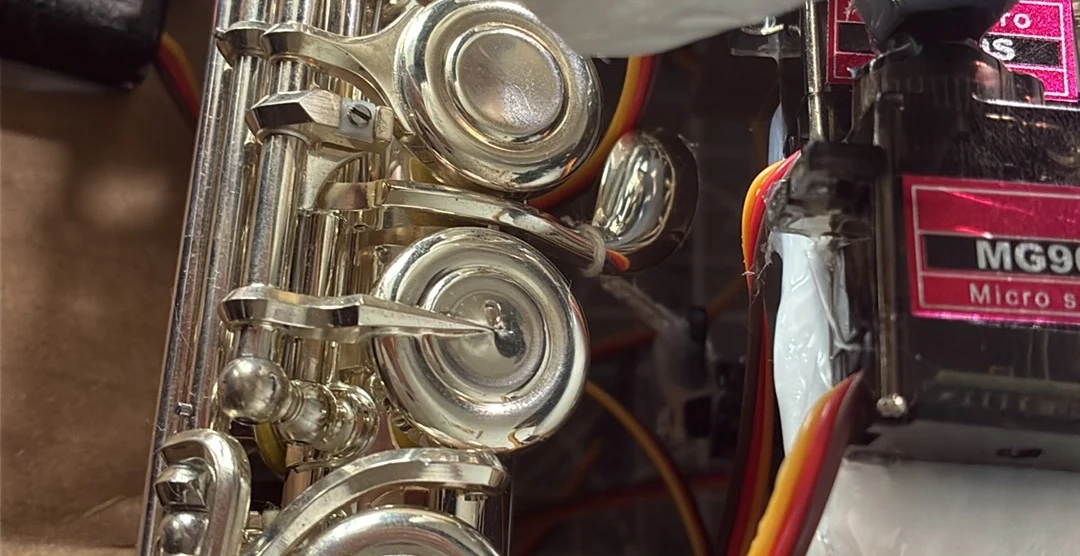

Ventus Reed II: String Structure — String Structure

02 / MOTION STUDIES

See the mechanisms
in motion.

Button Press

Open original video ↗

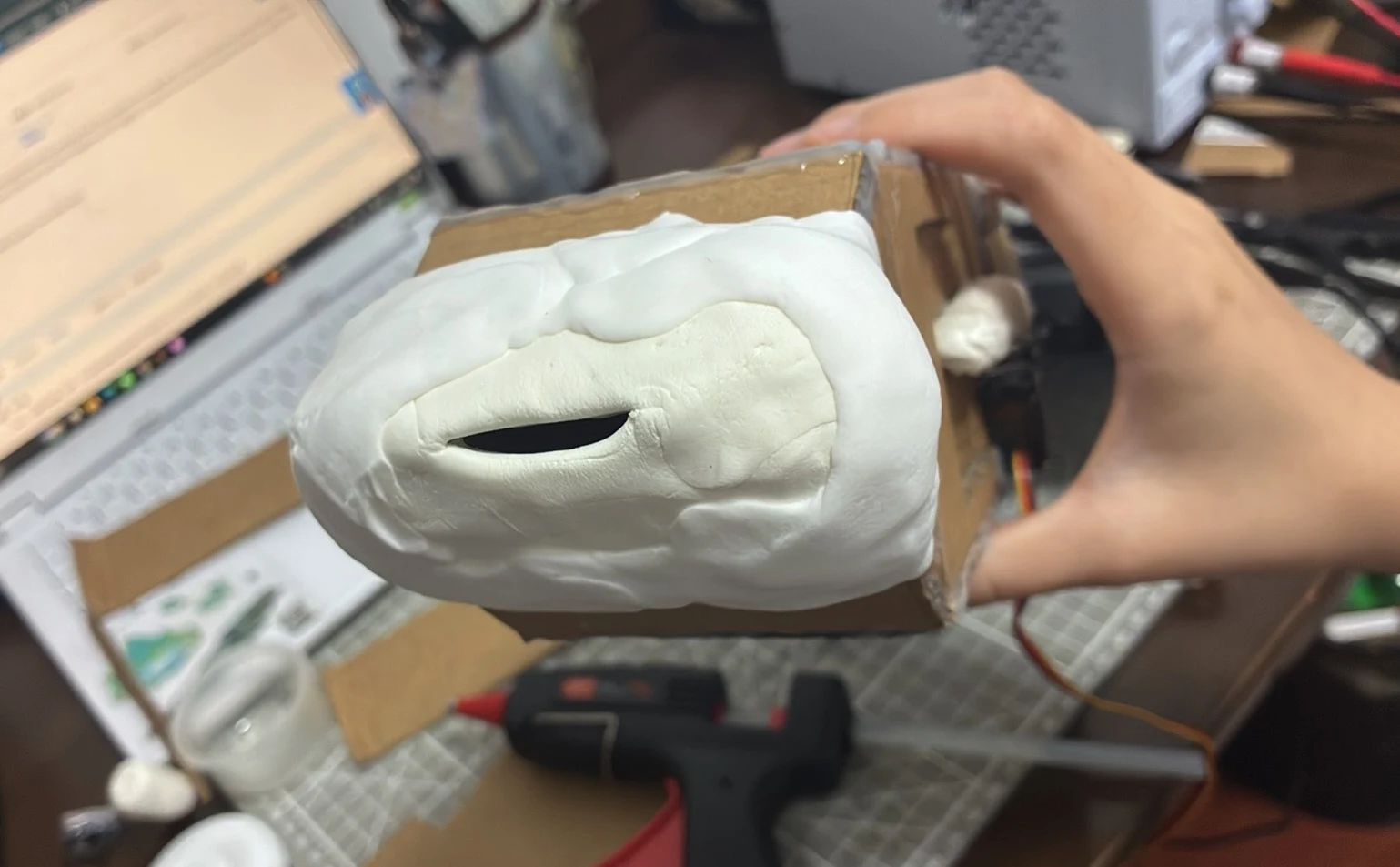

tunnel&valve

Open original video ↗
